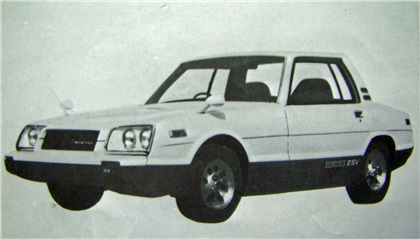

1973 Toyota ESV

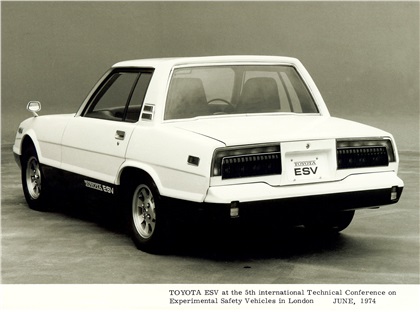

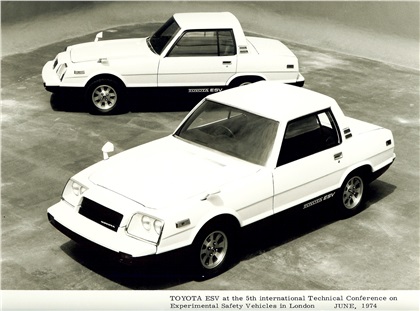

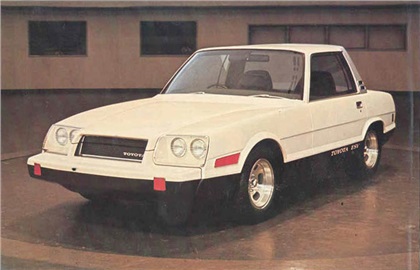

Toyota ESV, 1973
Toyota ESV, 1973
Toyota ESV, 1973
Toyota ESV, 1973
Toyota ESV, 1973
Toyota ESV, 1973

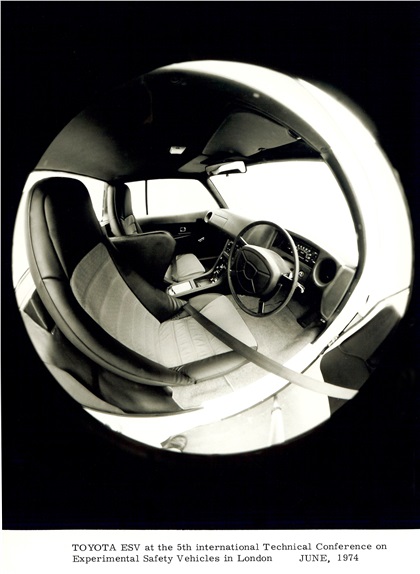

Toyota ESV, 1973 - Interior
Toyota ESV, 1973 - Interior
Toyota ESV, 1973
Toyota ESV, 1973
Toyota ESV, 1973
Toyota ESV, 1973

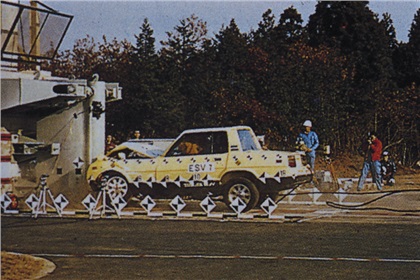

Toyota ESV - Public pole impact test for the Toyota ESV (Japan Automobile Research Institute, Yatabe-machi, Ibaraki Prefecture, November 1973)
Toyota ESV - Public pole impact test for the Toyota ESV (Japan Automobile Research Institute, Yatabe-machi, Ibaraki Prefecture, November 1973)
Toyota ESV (ESV-2?)
Toyota ESV (ESV-2?)

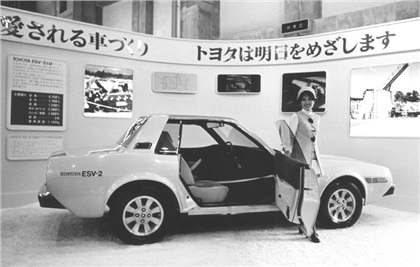

Toyota ESV-2 - The 19th Tokyo Motor Show 1972
Toyota ESV-2 - The 19th Tokyo Motor Show 1972
Images: Toyota
Rating:  3    -1    +4
ESV - Experimental Safety Vehicle
The ESV was a 2-door, 2-seater concept car built to conform to the Japanese government's Experimental Safety Vehicle specifications and shown during the 1973 Tokyo Motor Show. The ESV was the 100th and final vehicle produced by Toyota under the ESV program. It was mostly similar to the ESV-2 except the ESV had larger, plastic bumpers and slight differences in the trim.

Safety features included 4-wheel anti-skid brakes, 4-beam headlights, air bags, silicone rubber front bumper mounted on internal shock absorbers and crumple zones. The front suspension used double wishbones.


Toyota developed a 2500-pound two-seater coupe that was powered by a 1.7-liter four-cylinder engine. The mill was bolted to an automatic transmission that was said to be safer than a manual because it was controlled by a computer and not a human.

The prototype was packed full to the brim with electronic gadgets, including a system that automatically adjusted the brightness of the headlights based on the car’s speed and a radar that scoped the road ahead to detect obstacles. If a collision with an object was unavoidable, the radar sent a signal to a module that deployed gas bags that acted more or less in the same fashion as modern airbags.

Toyota’s ESV also used a primitive on-board computer that monitored the brake fluid level and the engine oil level, among other vitals.


The rise in traffic accidents was also becoming a serious problem outside Japan. Against this backdrop, in February 1970 the U.S. Department of Transportation advocated the development of experimental safety vehicle (ESVs) to conduct research in order to improve vehicle safety to the absolute maximum and improve safety related technological standards.

At the time, approximately 60 percent of people killed in automotive accidents in the United States were vehicle occupants. Automotive safety, particularly occupant safety, had become a major issue, and the proposed ESV development plan aimed to study and improve vehicle safety in order to protect occupants and help drivers avoid risks.

The U.S. government called on the Japanese and West German governments to cooperate in ESV development. In November 1970, the United States and Japan exchanged memorandums on ESV development, and Japan formally agreed to take part in the ESV project. It was agreed that the United States would develop a 4,000-pound (approximately 1,800-kilogram) ESV, while other participant countries, including Japan, would develop a 2,000-pound (approximately 900-kilogram) ESV. Automakers in the United States, Japan, West Germany and other countries devoted their cutting-edge technology to ESV development.

In May 1971, the Japanese government finalized the specifications for Japan's ESV, based on U.S. ESV specifications, and recruited automakers to work on development. The Japanese specifications for the ESV included shock-absorption ability sufficient to protect the life of all occupants in a collision at 80 kilometers per hour, ensuring a "life-saving" space within the cabin, and preventing occupants from being thrown from the vehicle.

Toyota applied to participate in development of the 2,000-pound (approximately 900-kilogram) ESV in June that year. In joining the project, the company hoped to actively contribute to accident prevention, and to gain the technical capability to respond to future changes in safety standards.

Development of the Toyota ESV began in February 1971. In addition to the body and brakes, the departments responsible for the vehicle outfitting chassis, and drive mechanisms worked together closely, and Nippondenso Co., Ltd. (now Denso Corporation) and Aisin Seiki Co., Ltd. also cooperated with development. Following advanced development and the first and second prototype stages, Toyota's ESV was completed in June 1973, in line with specifications. From September through to the end of December, a total of 10 vehicles were delivered to the Japanese government. These ESVs underwent performance testing based on Japanese ESV specifications, with testing of all items completed in March 1974.

In order to absorb the massive energy from a frontal collision at 80 kilometers per hour, Toyota's ESV employed an S-shaped frame at its front. In addition, creating the quarter pillar with an almost vertical configuration minimized the pillar's penetration into the vehicle cabin during a crash. To protect occupants during a side-on collision, the side construction also featured a rigid beam on the exterior, and on the interior the door trimoffered protection to occupants.

Furthermore, in order to secure occupants in place during a crash, the vehicle featured a passive lap belt that fitted automatically when occupants were seated, as well as an airbag device, which inflated on impact after determining a collision was imminent to protect occupants from secondary collisions. Several new types of systems were developed, with both the front and rear wheels dually fitted with disc brakes and ESC, aiming for the optimum in braking performance.

The Toyota ESV-2, the result of making practical improvements to the first-prototype Toyota ESV-1, was exhibited at the 19th Tokyo Motor Show in November 1972. Toyota's group-wide effort to research and develop vehicle safety technology gained widespread attention.

Although the ESV was completed as a test vehicle, cost and productivity were not factored into the development. However, Toyota proactively incorporated the safety technologies gained during ESV development into its mass produced vehicles wherever possible. Of these, the redesigned Corona (RT100) released in August 1973 featured several new safety technologies, fusing the concept and technologies of the Toyota ESV with mass production. Structural features, including a large shock-absorbing bumper, a large single-piece plastic instrument panel, and an energy-absorbing steering column, were developed and employed in the model. The Corona also featured the "OK Monitor", developed as an active safety device.

These safety features won acclaim from the market, propelling the Corona to the position of best-selling compact size car for 35 consecutive months from December 1973 to October 1976
Source: Wiki; ranwhenparked.net; www.toyota-global.com
